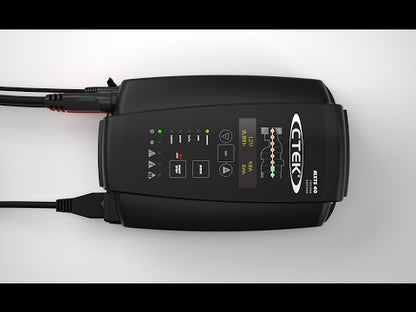

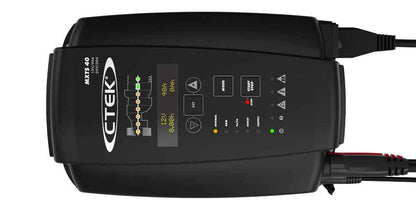

CTEK MXTS 40 (12-24V) Smart Battery Charger with fast multi step charging 2 IN 1 for charging station for workshops and showrooms - private car

Product: MXTS 40 UK (Malaysia Plug)

Key Benefits:

• Comprehensive battery support designed for professional workshops
• Dual power supply for both 12V and 24V systems
• Adjustable output voltages for precise control
• Fully automatic 8-step charging process
• Consistent performance with automatic parallel load compensation

Product Description:

12V | 24V | The Ultimate Battery Solution for Professional Workshops

The MXTS 40 is your go-to tool for all 12V and 24V battery needs. Designed with a dual voltage power supply and precise voltage adjustments (0.4V increments for 12V and 0.8V for 24V), it ensures that complex diagnostics, repairs, and reprogramming are done safely and efficiently, without risking damage to sensitive vehicle electronics.

Equipped with automatic parallel load compensation, the MXTS 40 maintains consistent voltage and amperage, even under additional battery loads. This, combined with its fast, fully automatic 8-step charging process and temperature control for any weather, makes the MXTS 40 the all-in-one solution for battery support, charging, and maintenance in your workshop.

Features:

• Supports up to 40A (12V) and 20A (24V)
• Selectable power supply with fine-tuned output (0.4V for 12V, 0.8V for 24V)
• User-friendly, multilingual LCD display
• Quick and automatic 8-step charging
• Specialized programs for normal, AGM, and Ca/Ca batteries
• ‘BOOST’ program for reconditioning deeply discharged lead-acid batteries
• 8-step, fully automatic charging cycle
• Compatible with 12V and 24V normal, MF, Ca/Ca, AGM, GEL batteries
• Low start-up voltage (2V) for charging
• Consistent output with automatic parallel load compensation
• Extremely low ripple for safe use with sensitive electronics
• Automatic temperature compensation for all weather conditions
• IP20 protection rating
• 2-year warranty
• Optional accessories: TROLLEY PRO and WALL HANGER PRO mounting kits, 5-meter DC cable

The MXTS 40 UK is the reliable, all-in-one battery tool every professional workshop needs.

Technical Data:

• Charging Category: AC charging
• Input: 220–240 VAC, 50–60 Hz, 3.0 A
• Output: 14.4 V, 40 A/12 V or 20 A/24 V
• Power Supply Mode: Max 40A/20A; Selectable output in steps of 0.4V, from 13.6V to 14.8V (12V setting) and in steps of 0.8V from 27.2V to 29.6V (24V setting)
• Battery Chemistry: Lead acid
• Charging Voltage:
  • 12V: 14.4V/14.7V/15.8V
  • 24V: 28.8V/29.4V/31.6V
• Battery Types: 12V, 24V; WET, MF, Ca/Ca, AGM, GEL
• Battery Capacity:
  • 12V: 20–1200 Ah
  • 24V: 10–600 Ah
• Parallel Load: Automatic
• Back Current Drain: Corresponding to less than 1 Ah/month
• Battery Voltage: 12V, 24V
• Ambient Operating Temperature: -20 ˚C to +50 ˚C (- 4 °F to +122 °F)
• Cooling: Fan
• Start Voltage: 2.0 V
• Ripple: Less than 4%
• Temperature Compensation: Temperature compensation and battery reconditioning functions
• Degree of Protection: IP20
• Gross Weight (Unit in Box): 3.7 kg
• Dimensions (L x W x H): 254 x 160 x 76 mm
• Net Weight (Unit with Cables): 1.3 kg
• User Interface: LCD graphical display; Multilingual, easy to read
• Disclaimer: All products and product specifications are subject to change without notice to improve reliability, function, or design. In the event of a product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.
• Warranty: 2 years

This technical data provides a comprehensive overview of the MXTS 40 UK, ensuring all critical specifications are clearly communicated.

Important Considerations Before Purchasing a CTEK Charger:

1. Battery lifespan under 2 years: If your car battery is less than 2 years old, the CTEK charger might be able to charge it, depending on its current voltage. However, the overall condition of the battery will determine whether it can be fully revived.

2. Battery voltage 2 volts and above: The CTEK charger operates effectively when the battery voltage is at or above 2 volts. If the voltage drops below 2 volts, and especially if it's between 0-2 volts, the Battery Management System (BMS) may lock the battery to prevent further discharge and damage. In such cases, the CTEK charger is unlikely to charge the battery due to the BMS lock. To avoid this issue, make sure to charge your battery before it reaches such a low voltage. If the battery is locked, only a professional may be able to unlock it, though success is not guaranteed. Pre-charging by a professional may be required before using the CTEK charger.

3. CTEK charger limitations: While the CTEK charger can help extend your battery’s life, it may not be able to revive a battery that can no longer accept a charge or hold a charge anymore. If the charger detects issues such as very low voltage or significant battery deterioration, it will display a red LED warning light, indicating that the battery may require professional attention or replacement, as it might be beyond recovery.
